The DPS-100D Digital RF Power Measurement System
New! The DPS-100D Digital RF Power Measurement System includes a precision directional coupler ordered by EIA line size, and DPS-100D Digital RF power meter electronics package with onboard backlit LCD display. This system is suitable for measuring analog or digital RF signals with accuracy within +/- 5% of reading.
Use the DPS-100D as a standalone power monitor/antenna protection system or use more than one DPS-100D to create monitor system for master antenna applications or for complete RF facility site monitoring. The DPS-100D is part of a larger family of site monitoring products available from Broadcast Devices, Inc. Please click here for more information.
Please click here to access the DPS-100D technical manual.
Please click here for a live demo of the DPS-100D sensor.
We take care of everything between your antenna and your transmitter!
This includes automation and interlock control. Optional Lan board allows viewing of vital information such as: Forward Power, Reflected Power, Switch Position, Temperature, Line Pressure, Fault and Fault Reset.
Packages include:
- SWP-200 Integrated Power Meter/Four Port Switch Controller
- DPS-100 RF Sample Interface
- ERI Precision Coupler to match your line size
- ERI Transfer Switch (coaxial or waveguide)
- All necessary cables, and connections
- No hassle support from knowledgeable staff
BDI can also provide custom solutions.
Forward thinking design means when your needs grow, our system can be expanded to meet those needs. Our goal is to become a long term partner by providing you with outstanding value and support.
Click on the line size you are using: 1-5/8", 3-1/8", 4-1/16", 6-1/8", Waveguide.

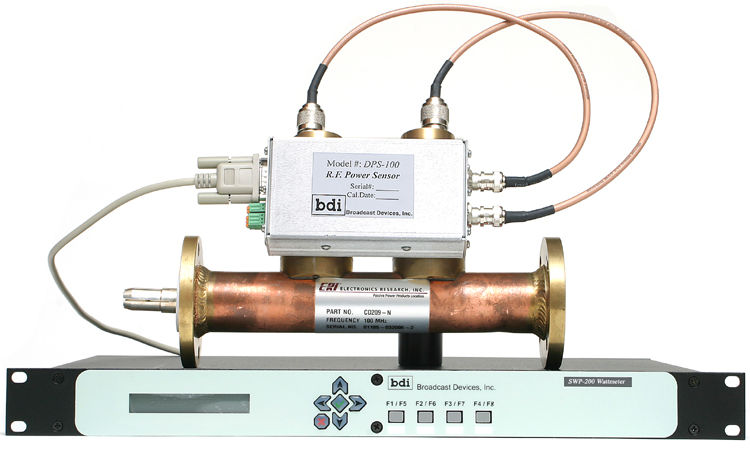

The SWP-200 Digital RF Power Meter/Switch Controller
New! NAB 2009 Cool Stuff Award Winner! The SWP-200 Digital RF Power Meter/Switch Controller is suitable for digital and analog forward- and reflected-power measurements. The SWP-200 provides complete control of one to up to four RF switches. The SWP-200 can be interfaced to most four port switches and optionally can be provided with interface cables for most four port switches made. The SWP-200 provides one-button control of four port switches, manages interlock closures and transmitter control in a single rack unit chassis. Optional features include RF failure and RF safety sensing to protect a switch from damage if RF is present and a switch command is called for. There also is an optional LAN Interface that allows the SWP-200 to be connected to the Internet. The SWP-200 can operate in hands-off, pre-programmed mode, or in manually controlled mode. The SWP-200 also can be used in AM radio applications to control multiple open frame contactors. This is a versatile RF support product that provides around-the-clock peace of mind! Click here for more information.
Three Simple Steps For Ordering:
1. Frequency of Operation in MHz.
2. Line Size (1-5/8, 3-1/8, 4-1/16, 6-1/8 or custom)
3. RF Power Output In Watts or Kilowatts
Installation is easy, and setup takes just minutes!
Please click here to access the SWP-200 technical manual.
Please click here for information on our FREE Software Graphical User Interface.
SWP-200 Accessories
BDI is offering several new accessories to work with our SWP-200 Digital RF Power Meter/Switch Controller! Please click on the items below for more information.
Temperature Sensor
Pressure Sensor
Expansion Board

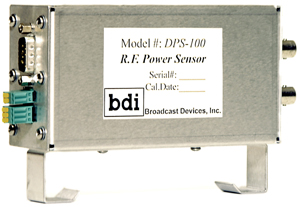

The DPS-100 Dual Power Sensor
New! The DPS-100 Dual Power Sensor is designed to interface with the above SWP-200 Power Monitor VSWR Protection System. This sensor was developed to meet the demands of today's digital broadcast RF systems. The DPS-100 attaches to any RF directional coupler or DC line section that has been retrofitted with an RF sample element. The RF signals are converted to a pair of proportional precision DC voltages or as an option serial RS-485 data stream. The DPS-100 has two RF ports to measure forward and reflected power. There is provision for an optional temperature sensor, also available from BDI.
There is also provision to monitor a switch closure, such as those used for interlocks. The DPS-100 is supplied with a mounting bracket as shown for attachment to RF rigid line sections. The DPS-100 is suitable for use in measuring analog AM/FM, digital radio/television RF power. RF input is BNC and the output interface is DB9 connector. Connectors also are supplied for temperature and switch closure. Click here for more information.
White Papers
RF Power Measurement Techniques
RF Measurement Sample Point: Its Importance
